Introduction

Welcome to the Spotii API!

Merchants can use our API to access Spotii API endpoints, which can checkout, capture and refund.

Spotii offers integration with the following eCommerce platforms

Magento 2
WooCommerce
Shopify

Authentication

To authorize, use this code to obtain a temporary bearer token:

curl -v -H 'Accept: application/json' \-H 'Content-Type: application/json' \-X POST -d '{      "public_key": "<your-public-key>",      "private_key": "<your-private-key>"    }' https://auth.sandbox.spotii.me/api/v1.0/merchant/authentication/

Make sure to replace <your-public-key> and <your-private-key> with your API keys. The information can be found from your merchant dashboard > settings > integrations.
The above command returns JSON structured like this:

{   "token":  "<temporary-bearer-token>" }

Spotii uses OAuth 2.0 Bearer Token Usage to allow access to the APIs.

Spotii expects the bearer token authentication to be included in all API requests to the server in a header that looks like the following:

Authorization: Bearer <temporary-bearer-token>

You must replace <temporary-bearer-token> with the returned temporary bearer token. The token is valid for 5 minutes.

Checkout

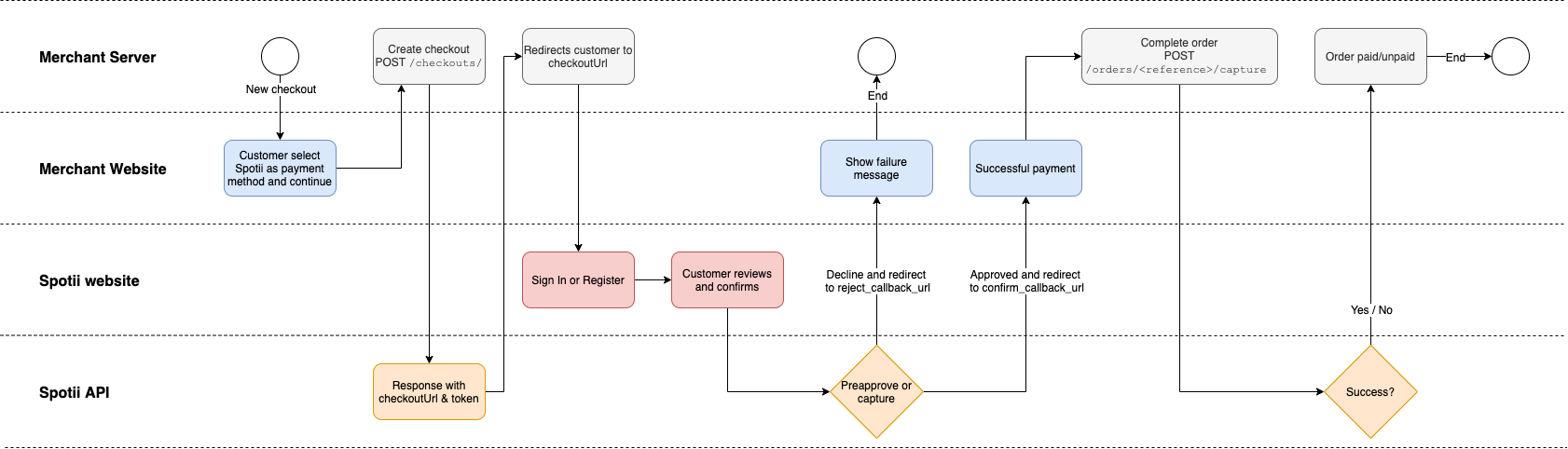

⚬ Workflow

⚬ Create a Checkout

curl -v -H 'Accept: application/json; indent=4' \-H 'Content-Type: application/json' \-H 'Authorization: Bearer <temporary-bearer-token>' \-X POST -d '{    "reference": "198776653",    "display_reference": "198776653",    "description": "Order #198776653",    "total": "300.00",    "currency": "USD",    "confirm_callback_url": "https://mywebsite.com/?success",    "reject_callback_url": "https://mywebsite.com/?failed",    "order": {        "tax_amount": null,        "shipping_amount": null,        "discount": null,        "customer": {          "first_name": "George",          "last_name": "Clooney",          "email": "[email protected]",          "phone": "+971559993322"        },        "billing_address": {            "title": "Mr",            "first_name": "George",            "last_name": "Clooney",            "line1": "My House 12",            "line2": "",            "line3": "",            "line4": "Dubai",            "state": "",            "postcode": "4400",            "country": "AE",            "phone": "+971559993322"        },        "shipping_address": {            "title": "Mr",            "first_name": "George",            "last_name": "Clooney",            "line1": "My House 12",            "line2": "",            "line3": "",            "line4": "Dubai",            "state": "",            "postcode": "4400",            "country": "AE",            "phone": "+971559993322"        },        "lines": [          {            "sku": "sku-1",            "reference": "reference-1",            "title": "Livingston All-Purpose Tight",            "upc": "upc-1",            "quantity": 1,            "price": "300.00",            "currency": "USD",            "image_url": "http://mywebsite.com/products/mh07-gray_main_2.jpg"          }        ]    }}' https://api.sandbox.spotii.me/api/v1.0/checkouts/

The above command returns JSON structured like this:

{     "reference":  "198776653",     "display_reference":  "198776653",     "description":  "Order #198776653",     "total":  "300.00",     "currency":  "USD",     "confirm_callback_url":  "https://mywebsite.com/?success",     "reject_callback_url":  "https://mywebsite.com/?failed",     "order":  {         "tax_amount":  null,         "shipping_amount":  null,         "discount":  null,         "customer":  {             "first_name":  "George",             "last_name":  "Clooney",             "email":  "[email protected]",             "phone":  "+971559993322"         },         "billing_address":  {             "title":  "Mr",             "first_name":  "George",             "last_name":  "Clooney",             "line1":  "My House 12",             "line2":  "",             "line3":  "",             "line4":  "Dubai",             "state":  "",             "postcode":  "4400",             "country":  "AE",             "phone":  "+971559993322"         },         "shipping_address":  {             "title":  "Mr",             "first_name":  "George",             "last_name":  "Clooney",             "line1":  "My House 12",             "line2":  "",             "line3":  "",             "line4":  "Dubai",             "state":  "",             "postcode":  "4400",             "country":  "AE",             "phone":  "+971559993322"         },         "lines":  [             {                 "line_id":  "b05508f7-825f-413a-8fa6-ce6fff24315d",                 "sku":  "sku-1",                 "reference":  "reference-1",                 "notes":  null,                 "title":  "Livingston All-Purpose Tight",                 "upc":  "upc-1",                 "quantity":  1,                 "price":  "300.00",                 "currency":  "USD",                 "image_url":  "http://mywebsite.com/products/mh07-gray_main_2.jpg"             }         ]     },     "checkout_url":  "https://sandbox.spotii.me/checkout/?token=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJleHAiOjE1ODE5MzQ5NDAsImNoZWNrb3V0X2lkIjoiYmM2ODg5ZDctZDc5Mi00MDAyLWE4OGQtOTgwZjJjNzg0Mjk1In0.K-U4pRnfaNZ4aCKR-OFy9zVrIywhBaNlCOTAZEmzaLE" }

This endpoint creates a merchant checkout. Upon a successful request, a checkout_url link will be provided for the merchant's customer to process payment at Spotii's payment portal. If payment is successful, the customer will be redirected to the provided confirm_callback_url link. Else if payment is rejected, the customer will be redirected to the provided reject_callback_url link.

HTTP Request

POST https://api.sandbox.spotii.me/api/v1.0/checkouts/

Query Parameters

Parameter	Type	Description
reference	String	Merchant's unique reference ID
display_reference	String	Display of merchant's reference ID
description	String	Order description
total	Decimal	Total amount of the order, including tax, shipping and discount.
currency	Currency	ISO 4217 order currency. Currently supports "USD" for sandbox and "AED" or "SAR" for production.
confirm_callback_url	String	Merchant URL for confirmed order
reject_callback_url	String	Merchant URL for rejected order
order	Order	Order information.

Order

{   "tax_amount":  null,   "shipping_amount":  null,   "discount":  null,   "customer":  {},   "billing_address":  {},   "shipping_address":  {},   "lines":  [] }

Parameter	Type	Description
tax_amount	Decimal	Tax amount.
shipping_amount	Decimal	Shipping amount.
discount	Decimal	Discount amount.
customer	Customer Object	Customer information.
billing_address	Billing Object	Billing address.
shipping_address	Shipping Object	Shipping address.
lines	Lines ArrayOf(Object)	A list of line objects.

Customer

{   "first_name":  "George",   "last_name":  "Clooney",   "email":  "[email protected]",   "phone":  "+971559993322" }

Parameter	Type	Description
first_name	String	First name.
last_name	String	Last name.
email	String	A valid email address.
phone	String	Phone number.

Billing

{   "title":  "Mr",   "first_name":  "George",   "last_name":  "Clooney",   "line1":  "My House 12",   "line2":  "",   "line3":  "",   "line4":  "Dubai",   "state":  "",   "postcode":  "4400",   "country":  "AE",   "phone":  "+971559993322" }

Parameter	Type	Description
title	String	Title.
first_name	String	First name.
last_name	String	Last name.
line1	String	Street address.
line2	String	Apartment, suite, floor, etc.
line3	String	Optional
line4	String	City
state	String	State or Region or Province.
postcode	String	Postal Code.
country	Country	ISO 3166 alpha-2 country code.
phone	String	Phone number.

Shipping

{   "title":  "Mr",   "first_name":  "George",   "last_name":  "Clooney",   "line1":  "My House 12",   "line2":  "",   "line3":  "",   "line4":  "Dubai",   "state":  "",   "postcode":  "4400",   "country":  "AE",   "phone":  "+971559993322" }

Parameter	Type	Description
title	String	Title.
first_name	String	First name.
last_name	String	Last name.
line1	String	Street address.
line2	String	Apartment, suite, floor, etc.
line3	String	Optional
line4	String	City
state	String	State or Region or Province.
postcode	String	Postal Code.
country	Country	ISO 3166 alpha-2 country code.
phone	String	Phone number.

Lines

{   "sku":  "sku-1",   "reference":  "reference-1",   "title":  "Livingston All-Purpose Tight",   "upc":  "upc-1",   "quantity":  1,   "price":  "300.00",   "currency":  "USD",   "image_url":  "http://mywebsite.com/products/mh07-gray_main_2.jpg" }

Parameter	Type	Description
sku	String	Line SKU.
reference	String	Reference ID
title	String	Line title.
upc	String	Line UPC.
quantity	Integer	Line quantity.
price	String	Line price, excluding tax, shipping and discount.
currency	Currency	ISO 4217 order currency. Currently supports "USD" for sandbox and "AED" or "SAR" for production.
image_url	String	Line image url.

Order

⚬ Get

An order object will not exist unless the payment is authorized.

Request

curl -v -H 'Accept: application/json' \-H 'Content-Type: application/json' \-H 'Authorization: Bearer <temporary-bearer-token>' \-X GET https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/

{         "order_id":  "9d7f31ac-d030-41e4-adf1-8769cae32520",         "reference":  "TDU4YSXB3RY89OG",         "display_reference":  "TDU4YSXB3RY89OG",         "description":  "Order #TDU4YSXB3RY89OG Description:",         "total":  "200.9900",         "currency":  "AED",         "tax_amount":  null,         "shipping_amount":  null,         "discount":  null,         "customer":  {             "first_name":  null,             "last_name":  null,             "email":  "",             "phone":  null         },         "billing_address":  null,         "shipping_address":  null,         "lines":  [],         "created_at":  "2020-12-13T07:45:25.168325Z",         "updated_at":  "2020-12-13T07:45:29.548974Z",         "order_number":  "9QG738WMHKRW",         "status":  "OPENED",         "total_refund":  "0",         "capture_expiration":  "2020-12-18T07:45:25.168325+00:00",         "employee_name":  "Spotii Merchant"     }

GET https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/

You must replace <reference> with the merchant’s unique reference ID.

Response

Excluding values at checkout POST

Parameter	Type	Description
status	String	Either OPENED or COMPLETED *
total_refund	String	The amount of Refunds done on the order
employee_name	String	Reference ID
capture_expiration	String	Capture expiry time stamp

⚬ Capture

curl -v -H 'Accept: application/json' \-H 'Content-Type: application/json' \-H 'Authorization: Bearer <temporary-bearer-token>' \-X POST https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/capture/

This endpoint captures an order that has been approved by Spotii's payment portal.

Request

POST https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/capture/

You must replace <reference> with the merchant’s unique reference ID.

Response

Parameter	Type	Description
status	String	Transaction status: SUCCESS or FAILURE
order_id	String	unique order uuid
amount	String	The amount captured (returned on SUCCESS)
currency	Currency	ISO 4217 order currency (returned on SUCCESS)
type	String	Transaction type "CAPTURE" (returned on SUCCESS)

Exceptions

Code	Description
404	Transaction does not exist

⚬ Refund

curl -v -H 'Accept: application/json' \-H 'Content-Type: application/json' \-H 'Authorization: Bearer <temporary-bearer-token>' \-X POST -d '{      "total": "100.00",      "currency": "USD"    }' https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/refund/

This endpoint refunds an order. This can be done at any time there is no window.

Request

POST https://api.sandbox.spotii.me/api/v1.0/orders/<reference>/refund/

Query Parameters

Parameter	Type	Description	Required
total	Decimal	Total amount of the order, including tax, shipping and discount.
currency	Currency	ISO 4217 order currency.

You must replace <reference> with the merchant’s unique reference ID.

Response

Parameter	Type	Description
status	String	Transaction status: SUCCESS or FAILURE
order_id	String	unique order uuid
amount	String	The amount captured
currency	Currency	ISO 4217 order currency
type	String	Transaction type "REFUND"
transaction_id	String	unique uuid for the transaction

Exceptions

Code	Description
406	Transaction is already refunded or Transaction is still open
404	Transaction does not exist

Errors

Spotii uses conventional HTTP response codes to indicate the success or failure of an API request.

Error Code	Meaning
200	OK — Success.
400	Bad Request — The request was invalid, please double check the required parameter(s).
401	Unauthorized — No valid Bearer Token provided.
402	Request Failed — The parameters were valid but the request failed.
404	Not Found — The requested resource could not be found.
406	Not Acceptable — Cannot produce a response matching the list of acceptable values.
500	Internal Server Error — We had a problem with our server. Try again later.

Platforms

Magento 2

This extension allows you to use Spotii as a payment gateway in your Magento 2 store.

1. Installation steps

Installation Using Composer (Recommended)

composer require spotii/spotiipay
php bin/magento setup:upgrade
php bin/magento setup:di:compile
php bin/magento setup:static-content:deploy
php bin/magento cache:clean

Manual Setup

Sign up for Spotii account at https://dashboard.sandbox.spotii.me/merchant/signup/
In your Magento 2 [ROOT]/app/code/ create folder called Spotii/Spotiipay.
Download and extract files from this repository to the folder.
Open the command line interface.
Enable Spotii by running command below:php bin/magento module:enable Spotii_Spotiipay
Magento setup upgrade:php bin/magento setup:upgrade
Magento Dependencies Injection Compile:php bin/magento setup:di:compile
Magento Static Content deployment:php bin/magento setup:static-content:deploy
Login to Magento Admin and navigate to System/Cache Management
Flush the cache storage by selecting Flush Cache Storage

2a. Admin Configuration

Login to your Magento Admin
Navigate to Store > Configuration > Sales > Payment Methonds > Spotii > Payment Settings
Click Register for Spotii or I’ve already setup Spotii, I want to edit my settings

2b. Payment Setup

Set the Payment Mode to Live for LIVE and set it as Sandbox for SANDBOX.
Set the Merchant ID, Public Key and Private Key. The information can be found from your merchant dashboard.
Set Payment Action as Authorize only for doing payment authorization only and Authorize and Capture for doing authorization as well as payment capture.
Set the Merchant Country as per the origin.
Enable the log tracker to trace the Spotii checkout process.
Save the configuration and clear the cache.

Navigate to Stores/Configuration/Sales/Payment Methods/Spotii/Widget Settings/Product Page in your Magento admin.
Provide the following information below to display the Spotii widget at the product page.
- Price Block Selector : XPath of the price element.
- Product page:render to element path : Location where to render the widget.
- Show in all countries : Yes/No.
- Alignment : Position of the widget.
- Theme : Widget theme.
- Width type : Text width of the widget.
- Image url : If you want to have different logo, paste the url here.
- Hide classes : Classes to be hidden when spotii widget is in place.
Save the configuration
Clear the cache.

Navigate to Stores/Configuration/Sales/Payment Methods/Spotii/Widget Settings/Cart Page in your Magento admin.
Provide the following information below to display the Spotii widget at the product page.
- Price Block Selector : XPath of the price element.
- Cart page:render to element path : Location where to render the widget.
- Show in all countries : Yes/No.
- Alignment : Position of the widget.
- Theme : Widget theme.
- Width type : Text width of the widget.
- Image url : If you want to have different logo, paste the url here.
- Hide classes : Classes to be hidden when spotii widget is in place.
Save the configuration
Clear the cache.

WooCommerce

This extension allows you to use Spotii as a payment gateway in your WooCommerce store.

Ensure you have signed up as a merchant on Spotii

1. Installation steps

Get folder ‘spotii-gateway’ from plugin zip
Copy this folder inside /Wordpress [ROOT]/wp-content/plugins/
Ensure folder structure as /wp-content/plugins/spotii-gateway/spotii-gateway.php

2a. Admin Configuration

Login to your WordPress Admin portal
Navigate to Plugins > Installed Plugins
Look for “Spotii Payment Gateway” in the plugins list and click “Install”
On installation complete, click on “Activate”

2b. Payment Setup

Navigate to WooCommerce > Settings > Payments
Check radio button “Enable” and click on “Set up” on Spotii Gateway
- Enable Spotii gateway
- Enable test mode – disable this when going live
- Put your test (staging) private and public keys in Test fields
- Put your live (staging) keys in Live fields
- Save changes

Production Checklist

Ensure test cases for all APIs pass in the sandbox environment
Switch API URLs from sandbox to production: https://api.spotii.me to https://api.sandbox.spotii.me
Switch public and private keys from sandbox to production (see Authentication)

Events

Events are messages/signals fired by our applications to registered webhooks URLs, which signify performed actions during the lifecycle of a BNPL order. Here you will find an exhaustive list of the types of events the Spotii system triggers during the lifecycle, from registration, to checkout, to order placement and management. To simplify understanding of the events, diagrams depicting event invocation for various stages of the lifecycle are also included.

Events – Registration and Account Management

Consumer Registration Event Flowchart

Merchant Registration Event Flowchart

Consumer, Merchant Account Management Event Flowchart

consumer/created

A new consumer account was created on the platform.

{     "event_type":  "consumer/created",     "event_id":  "2f48cc0b-1180-46d3-9a8a-88c740719d7b",     "meta_data":  {       "email":  "[email protected]",       "attempt_id":  "d54f93b8-526a-45f7-89c6-f8268348bf10",       "ip_address":  "192.168.1.1",       "checkout_id":  null,       "customer_id":  "a73bb1a8-f12e-4b2f-b1c2-1178e22e6f2d",       "phone_number":  "+1234567890",       "login_success":  true,       "recovery_link":  "/account/password-recovery/"     } }

Field	Description
event_type	A string representing the type of event that occurred.
event_id	A unique identifier for the event.
meta_data.email	The email address associated with the consumer.
meta_data.attempt_id	A unique identifier for the login attempt.
meta_data.ip_address	The IP address of the device used by the consumer.
meta_data.checkout_id	A unique identifier for the checkout process.
meta_data.customer_id	A unique identifier for the consumer.
meta_data.phone_number	The phone number associated with the consumer.
meta_data.login_success	A boolean indicating whether the login attempt was successful.
meta_data.recovery_link	The URL for the password recovery page.

consumer/deactivated

An existing consumer account was deactivated on the platform

{   "event_type":  "consumer/deactivated",   "event_id":  "d4d92a4a-984e-4f12-9d26-631f24c7f9b0",   "meta_data":  {     "country":  "Canada",     "consumer_id":  "dcfbfa90-64a7-4f5e-94c3-eb1d728c0d6a"   } }

Field	Description
event_type	The type of event that occurred.
event_id	The unique identifier of the event.
meta_data.country	The country associated with the consumer.
meta_data.consumer_id	The unique identifier of the consumer.

consumer/duplicate_id

A consumer uploaded an ID already registered under a different consumer account.

{   "event_type":  "consumer/duplicate_id",   "event_id":  "537ee7a6-82a6-44e2-bc0f-7a90d9f6a7a8",   "meta_data":  {     "reason":  "Customer profile already exists",     "bl_data":  [       {         "email":  "[email protected]",         "consumer_id":  "b6373f13-48f6-40eb-a9c9-54832017f8c8"       }     ],     "consumer_id":  "b6373f13-48f6-40eb-a9c9-54832017f8c8"   } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.
meta_data.reason	A description of why the consumer ID is being flagged as a duplicate.
meta_data.bl_data	An array of objects containing information about blacklisted consumers.
meta_data.bl_data.email	The email address associated with the blacklisted consumer.
meta_data.bl_data.consumer_id	The consumer ID associated with the blacklisted consumer.
meta_data.consumer_id	The consumer ID that is being flagged as a duplicate.

consumer/email/update/created

A consumer has initiated an account email update session

{     "event_type":  "consumer/email/update/created",     "event_id":  "cccfc72f-d97c-4db0-a87a-f2ea32d688c4",     "meta_data":  {       "new_email":  "[email protected]",       "old_email":  "[email protected]",        "object_type":  "user_user"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.
meta_data.new_email	The new email address associated with the consumer.
meta_data.old_email	The old email address associated with the consumer.
meta_data.object_type	The type of object that the email update relates to.

consumer/email/update/validated

A consumer has validated email update to new email address

{     "event_type":  "consumer/email/update/validated",     "event_id":  "1b86760c-851b-4af2-ab9c-fe900d5bddab",     "meta_data":  {       "new_email":  "[email protected]",       "old_email":  "[email protected]",       "object_type":  "user_user"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.
meta_data.new_email	The new email address associated with the consumer.
meta_data.old_email	The old email address associated with the consumer.
meta_data.object_type	The type of object that the email update relates to.

consumer/identity/created

A consumer has initiated an ID upload

{     "event_type":  "consumer/identity/created",     "event_id":  "b5f350ca-01c0-4d24-8b16-5b11c94c2bb1",     "meta_data":  {         "dob":  "01/01/1970",         "sex":  "F",         "name":  "Jane Doe",         "type":  "front",         "id_number":  "1234567890",         "card_number":  "0987654321",         "expiry_date":  "01/01/2023",         "nationality":  "USA"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.
meta_data.dob	The consumer's date of birth.
meta_data.sex	The consumer's gender.
meta_data.name	The consumer's name.
meta_data.type	The type of identity document that was created.
meta_data.id_number	The consumer's identity document number.
meta_data.card_number	The consumer's card number.
meta_data.expiry_date	The expiry date of the consumer's identity document.
meta_data.nationality	The consumer's nationality.

consumer/identity/validated

A consumer has validated an ID upload

{     "event_type":  "consumer/identity/validated",     "event_id":  "a1b2c3d4-e5f6-g7h8-i9j0-k1l2m3n4o5p6",     "meta_data":  {         "dob":  "21/07/1989",         "sex":  "M",         "name":  "John Doe",         "type":  "back",         "id_number":  "1234567890",         "card_number":  "0987654321",         "expiry_date":  "04/04/2025",         "nationality":  "USA"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.
meta_data.dob	The consumer's date of birth.
meta_data.sex	The consumer's gender.
meta_data.name	The consumer's name.
meta_data.type	The type of identity document that was created.
meta_data.id_number	The consumer's identity document number.
meta_data.card_number	The consumer's card number.
meta_data.expiry_date	The expiry date of the consumer's identity document.
meta_data.nationality	The consumer's nationality.

consumer/password/recovery/created

A consumer has initiate a password recovery session

{     "event_type":  "consumer/password/recovery/created",     "event_id":  "4268cce8-6fe8-42e8-a137-7236f46f0930",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/password/recovery/verifyed

A consumer has verifyed as owner of account attempted to recover.

{     "event_type":  "consumer/password/recovery/verifyed",     "event_id":  "0a1eb81f-0185-4889-bc77-fee82e599c37",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/password/update/created

A consumer has initiated update of account password

{     "event_type":  "consumer/password/update/created",     "event_id":  "c7bf57f8-dae0-42b8-bb59-62a2b89669e4",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/password/update/verifyed

A consumer has verifyed as owner of account whose password is being attempted to update.

{     "event_type":  "consumer/password/update/verifyed",     "event_id":  "4a923ef5-d119-4fa4-90df-c08176f82fd0",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/registration/created

A consumer has initiated a registration session

{     "event_type":  "consumer/registration/created",     "event_id":  "ae934ed4-eabe-46b8-a129-a017c1472d5d",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/registration/updated

A consumer has updated user details of a registration session

{     "event_type":  "consumer/registration/updated",     "event_id":  "e005df81-318f-4195-bb0c-35084369a2f1",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/registration/validated

A consumer has validated user details of a registration session

{     "event_type":  "consumer/registration/validated",     "event_id":  "f8485beb-daf3-420d-b652-eeed9a0d9287",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/registration/verifyed

A consumer has verified as owner of user details in a registration session

{     "event_type":  "consumer/registration/verifyed",     "event_id":  "c23c5f3d-66ad-4510-85d6-61e125578b61",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/updated

Account details are updated after ID upload

{     "event_type":  "consumer/updated",     "event_id":  "4f9fab6a-23c4-47a6-b867-45ebb06d8e86",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

consumer/update-phone

A consumer has updated their phone number

{   "event_type":  "consumer/update-phone",   "event_id":  "f23ecfa4-d4fb-451b-b347-1279bd4e4a38",   "meta_data":  {     "email":  "*********@aol.com",     "country":  "SAU",     "new_phone":  "+966*********",     "old_phone":  "+966*********",     "ip_address":  "10.244.16.70"   } }

Field Name	Description
event_type	Type of event triggered
event_id	Unique identifier for the event
meta_data.email	Email associated with the phone number update
meta_data.country	Country code of the phone number
meta_data.new_phone	The new phone number
meta_data.old_phone	The old phone number
meta_data.ip_address	IP address of the request that triggered event

A consumer signin was attempted

{   "event_type":  "customer/signin",   "event_id":  "f738e13c-2365-4c5f-bb5e-8cc7c5055f11",   "meta_data":  {     "attempt_id":  "c1d9712e-91f4-48e4-8d33-52f1f12173b6",     "ip_address":  "127.0.0.1",     "customer_id":  "e7d09d2e-0c19-49e2-824c-5016cf0c6dc9",     "login_success":  true   } }

Field	Description
event_type	A string representing the type of event that occurred.
event_id	A unique identifier for the event.
meta_data.attempt_id	A unique identifier for the login attempt.
meta_data.ip_address	The IP address of the device used by the consumer.
meta_data.customer_id	A unique identifier for the consumer.
meta_data.login_success	A boolean indicating whether the login attempt was successful.

email/submit/reminder/consumer

Reminder email to consumer to verify registered email

{     "event_type":  "email/submit/reminder/consumer",     "event_id":  "1854c2fe-b128-45fd-a5f5-4aaf77c52b8a",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

email/submit/reminder/merchant

Reminder email to merchant to verify registered email

{     "event_type":  "email/submit/reminder/merchant",     "event_id":  "05ffd3ab-7cd2-499d-82ad-f5f6e2826acd",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/approved

Merchant account has been approved by platform

{     "event_type":  "merchant/approved",     "event_id":  "3ce9e70c-a343-474b-aed3-52c5a2cd8243",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/created

Merchant account has been created

{     "event_type":  "merchant/created",     "event_id":  "9905078c-8e44-4c34-86aa-f4cf35885a03",     "meta_data":  {       "country":  "SAU",       "merchant_id":  "9e0f14e9-f16e-4674-8f40-009492ecy0ap",       "merchant_name":  "Test Merchant"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.country	Country code of the phone number
meta_data.merchant_id	Unique Identifier of new merchant created
meta_data.merchant_name	Name of new merchant account

merchant/password/recovery/created

A merchant has initiated a password recovery session

{     "event_type":  "merchant/password/recovery/created",     "event_id":  "5e8dc1a0-b738-4beb-9a66-63af4fca9bff",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/password/recovery/verifyed

A merchant has verifyed as owner of account attempted to recover.

{     "event_type":  "merchant/password/recovery/verifyed",     "event_id":  "cdf0c63b-81df-4d87-952e-1a7f099c14de",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/password/update/created

A merchant has initiated update of account password

{     "event_type":  "merchant/password/update/created",     "event_id":  "d6a18eed-e965-4a6b-80b3-e32c10bcc78a",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/password/update/verifyed

A merchant has verifyed as owner of account whose password is being attempted to update.

{     "event_type":  "merchant/password/update/verifyed",     "event_id":  "39017382-cdf2-49dd-b61b-a1fa2b54f3f2",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/registration/created

A merchant has initiated a registration session

{     "event_type":  "merchant/registration/created",     "event_id":  "e2773a0e-c221-425d-b912-c43ccc669fcc",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/registration/updated

A merchant has updated user details of a registration session

{     "event_type":  "merchant/registration/updated",     "event_id":  "b02d6583-e6e6-45fc-9862-6fc72a6ecc02",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/registration/validated

A merchant has validated user details of a registration session

{     "event_type":  "merchant/registration/validated",     "event_id":  "a8101717-4eed-4e55-a54d-0114f816ea78",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/registration/verifyed

A merchant has verified as owner of user details in a registration session

{     "event_type":  "merchant/registration/verifyed",     "event_id":  "4472501b-f545-4dbd-82bc-96cafb125149",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/tokens/public_private/created

Merchant account public and private keys were created

{     "event_type":  "merchant/tokens/public_private/created",     "event_id":  "883aa56f-33f6-452f-a038-6a11a120943f",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

merchant/updated

Merchant account details were updated

{     "event_type":  "merchant/updated",     "event_id":  "55370edc-4e57-4de2-bd5b-215b7fd71e99",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

otp/attempt

A One Time Password (OTP) login using account phone number was attempted

{     "event_type":  "otp/attempt",     "event_id":  "08ee50a1-2142-4dcf-9fc3-473d23d95370",     "meta_data":  {       "attempt_id":  "c6efc49f-ce92-4a93-8dd8-e53b97c02937",       "ip_address":  "127.0.0.1",       "customer_id":  "c6efc49f-ce92-4a93-8dd8-e53b976bd07f",       "phone_number":  "+966500000000",       "login_success":  true     } }

Field Name	Description
event_type	Type of event triggered
event_id	Unique identifier for the event
meta_data.attempt_id	A unique identifier for the login attempt.
meta_data.phone_number	Registered account phone number
meta_data.customer_id	A unique identifier for the registered account.
meta_data.ip_address	IP address of the request that triggered event
meta_data.login_success	A boolean indicating whether the login attempt was successful.

user/email/verifyed

User has verified as owner of the registered email address

{     "event_type":  "user/email/verifyed",     "event_id":  "6e738380-6d25-462c-99cd-cc019be1530d",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

User has signed in using OAuth token

{     "event_type":  "user/signin/token",     "event_id":  "5435d100-74d5-4d3c-b491-38ee79b1f6d2",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

User has signed in using username and password

{     "event_type":  "user/signin/username",     "event_id":  "b5ccaad7-97f5-45f2-b601-f36ac7753559",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

Events – Payment Methods and Installments

Installment Worker & Payment Method Event Flowchart

installment/purchase/account-locked

Installment auto deduction failed due to general linked payment method decline

{     "event_type":  "installment/purchase/account-locked",     "event_id":  "eb45d5a9-b6dd-491c-a2fb-13660cfd17f1",     "meta_data":  {       "currency":  "AED",       "order_id":  "c5da5a0c-1f90-40c9-8103-e3ecc1fb6e63",       "customer_id":  "c4a49004-c8b0-4334-af68-c6bb207ffa33",       "response_code":  "316",       "installment_id":  "f262a902-2ad0-4eaa-b038-8b6e89fe84b7",       "installment_amount":  500.25     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.response_code	Payment Service Provider response code for payment attempt
meta_data.installment_id	Unique identifier for installment
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/account-locked/auto-deduct

Installment auto deduction failed due to linked payment method not supporting further tokenized transactions

{     "event_type":  "installment/purchase/account-locked/auto-deduct",     "event_id":  "6403290d-27da-483c-84be-eea70af4b869",     "meta_data":  {       "currency":  "SAR",       "order_id":  "07c9c6d0-20ea-4dca-a6de-3535c169fdaa",       "customer_id":  "f262a902-2ad0-4eaa-b038-8b6de46645e4",       "payment_link":  "https://www.aetconline.com/account/orders/07c9c6d0-20ea-4dca-a6de-3535c169fdaa/pay/684e4bf2-e4ad-4971-b4ec-9c076624db25",        "response_code":  "",       "installment_id":  "684e4bf2-e4ad-4971-b4ec-9c076624db25",       "installment_amount":  425.10     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.payment_link	Payment link for customer to pay installment
meta_data.response_code	Payment Service Provider response code for payment attempt
meta_data.installment_id	Unique identifier for installment
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/failed

Installment auto deduction failure due to general linked payment method decline notification sent to customer

{     "event_type":  "installment/purchase/failed",     "event_id":  "7f449513-784a-439d-be7b-cdf520f055b4",     "meta_data":  {       "currency":  "AED",       "order_id":  "18b5f16c-59b2-41e7-a2ed-a927ca6f4950",       "customer_id":  "19b3c0bf-1472-413c-bfc6-f70f8efab6ff",       "response_code":  "316",       "installment_id":  "59ab2292-c80e-43e7-a553-64b1f18820a8",       "installments_id":  "69ab2991-8f0d-21e7-a533-64b1f188106b",       "installment_amount":  160.00     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.response_code	Payment Service Provider response code for payment attempt
meta_data.installment_id	Unique identifier for installment
meta_data.installments_id	Secondary identifier for order
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/failed/auto-deduct

Installment auto deduction failure due to linked payment method not supporting further tokenized transactions notification sent to customer

{     "event_type":  "installment/purchase/failed/auto-deduct",     "event_id":  "7f449513-784a-439d-be7b-cdf520f055b4",     "meta_data":  {       "currency":  "AED",       "order_id":  "18b5f16c-59b2-41e7-a2ed-a927ca6f4950",       "customer_id":  "19b3c0bf-1472-413c-bfc6-f70f8efab6ff",       "installment_id":  "59ab2292-c80e-43e7-a553-64b1f18820a8",       "installments_id":  "69ab2991-8f0d-21e7-a533-64b1f188106b",       "payment_link":  "https://www.aetconline.com/account/orders/18b5f16c-59b2-41e7-a2ed-a927ca6f4950/pay/59ab2292-c80e-43e7-a553-64b1f18820a8",       "installment_amount":  160.00     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.installment_id	Unique identifier for installment
meta_data.installments_id	Secondary identifier for order
meta_data.payment_link	Payment link for customer to pay installment
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/manual/reminder

Installment auto deduction scheduled in 5 days reminder

{     "event_type":  "installment/purchase/manual/reminder",     "event_id":  "7f449513-784a-439d-be7b-cdf520f055b4",     "meta_data":  {       "currency":  "AED",       "order_id":  "18b5f16c-59b2-41e7-a2ed-a927ca6f4950",       "customer_id":  "19b3c0bf-1472-413c-bfc6-f70f8efab6ff",       "installment_id":  "59ab2292-c80e-43e7-a553-64b1f18820a8",       "installments_id":  "69ab2991-8f0d-21e7-a533-64b1f188106b",       "payment_link":  "https://www.aetconline.com/account/orders/18b5f16c-59b2-41e7-a2ed-a927ca6f4950/pay/59ab2292-c80e-43e7-a553-64b1f18820a8",       "installment_amount":  160.00     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.installment_id	Unique identifier for installment
meta_data.installments_id	Secondary identifier for order
meta_data.payment_link	Payment link for customer to pay installment
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/success

Installment auto deduction success

{     "event_type":  "installment/purchase/success",     "event_id":  "7f449513-784a-439d-be7b-cdf520f055b4",     "meta_data":  {       "currency":  "AED",       "order_id":  "18b5f16c-59b2-41e7-a2ed-a927ca6f4950",       "customer_id":  "19b3c0bf-1472-413c-bfc6-f70f8efab6ff",       "response_code":  "316",       "installment_id":  "59ab2292-c80e-43e7-a553-64b1f18820a8",       "installments_id":  "69ab2991-8f0d-21e7-a533-64b1f188106b",       "installment_amount":  160.00     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.response_code	Payment Service Provider bank authorization code
meta_data.installment_id	Unique identifier for installment
meta_data.installments_id	Secondary identifier for order
meta_data.installment_amount	Installment amount attempted to deduct

installment/purchase/tomorrow

Installment auto deduction scheduled for tomorrow

{     "event_type":  "installment/purchase/tomorrow",     "event_id":  "7f449513-784a-439d-be7b-cdf520f055b4",     "meta_data":  {       "currency":  "AED",       "order_id":  "18b5f16c-59b2-41e7-a2ed-a927ca6f4950",       "customer_id":  "19b3c0bf-1472-413c-bfc6-f70f8efab6ff",       "response_code":  "316",       "installment_id":  "59ab2292-c80e-43e7-a553-64b1f18820a8",       "installments_id":  "69ab2991-8f0d-21e7-a533-64b1f188106b",       "installment_amount":  160.00     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.currency	Currency of order
meta_data.order_id	Unique identifier for order
meta_data.customer_id	Unique identifier for consumer account
meta_data.response_code	Payment Service Provider response code for payment attempt
meta_data.installment_id	Unique identifier for installment
meta_data.installments_id	Secondary identifier for order
meta_data.installment_amount	Installment amount attempted to deduct

payment_method/created

Payment Method added for user account

{   "event_type":  "payment_method/created",   "event_id":  "e02963e3-adab-43d6-9826-8acadc0b0b1e",   "meta_data":  {     "gateway":  "paytabs",     "prepaid":  false,     "currency":  "EUR",     "bin_number":  "484788",     "card_brand":  "Mastercard",     "token_name":  "3D3A47E01B218A7EBFC5BFF25F4A4F57",     "customer_id":  "b76d4f8d-9252-4fa8-a18e-1c1e7fb177eb",     "expiry_date":  "202603",     "response_code":  "238479",     "card_holder_name":  "John Doe",     "last_four_digits":  "0123",     "response_message":  "Success",     "payment_method_id":  "c3d8b5d5-34c5-4f60-a3c5-5d5d5cb5840f",     "token_card_number":  "tok_live_57HJSdu1AFQgjrS9fmsWtN",     "token_card_security":  "tok_live_X4fx8yW57bFvKx2Q35hd9S"   } }

Field Name	Description
event_type	Type of event
event_id	Unique identifier for the event
meta_data.gateway	Payment gateway used for transaction
meta_data.prepaid	Boolean value indicating if the payment was prepaid
meta_data.currency	Currency of the transaction
meta_data.bin_number	First six digits of the card used for transaction
meta_data.card_brand	Brand of the card used for transaction
meta_data.token_name	Unique identifier for the card token
meta_data.customer_id	Unique identifier for the customer
meta_data.expiry_date	Expiration date of the card used for transaction
meta_data.response_code	Response code from the payment gateway
meta_data.card_holder_name	Name of the card holder used for transaction
meta_data.last_four_digits	Last four digits of the card used for transaction
meta_data.response_message	Response message from the payment gateway
meta_data.payment_method_id	Unique identifier for the payment method
meta_data.token_card_number	Unique identifier for the card token in use
meta_data.token_card_security	Security of the card token in use

lean/entity/created

User linked bank account using Lean, the integrated open banking platform

{     "event_type":  "lean/entity/created",     "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",     "meta_data":  {       "bank_name":  "Bank of America",       "entity_id":  "8c0f39e1-7a20-4b07-a7e8-87a73b2dd291",       "customer_id":  "fa81dce3-3e3f-462c-8a71-29cf31a813de",       "permissions":  ["transactions",  "balance",  "identity",  "accounts"]     } }

Field Name	Description
event_type	Type of event
event_id	Unique identifier for the event
meta_data.bank_name	The name of the bank associated with the entity
meta_data.entity_id	Unique identifier for the entity
meta_data.customer_id	Unique identifier for the customer who created the entity
meta_data.permissions	List of permissions granted to the entity, such as "transactions", "balance", "identity", "accounts"

vcn/card/status_update

User freezes/unfreezes Virtual Card, updating the card status

{   "event_type":  "lean/entity/created",   "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",   "meta_data":  {         "card_id":  "bc1e7292-cc9f-437b-b961-228226385f4e",         "card_status":  "ACTIVE",         "user_id":  "cfcdee2f-9009-4cb9-831a-a3867f606064",         "card_product_id":  "bd05ff06-ec09-41e6-9094-ea5e587c9129",   } }

Field Name	Description
event_type	Type of event
event_id	A unique identifier for the event.
meta_data.card_id	The identifier of the VCN.
meta_data.card_status	The status of the card.
meta_data.user_id	The identifier of the user associated with the card.
meta_data.card_product_id	The identifier of the card product

vcn/card/pm/update

Payment method to deduct installments of orders placed using Virtual Card was updated

{   "event_type":  "vcn/card/account/loaded",   "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",   "meta_data":  {         "card_id":  "bc1e7292-cc9f-437b-b961-228226385f4e",         "card_status":  "ACTIVE",       "new_linked_pm":  "e015885b-3824-4476-9093-bbf55899d0d9",         "user_id":  "cfcdee2f-9009-4cb9-831a-a3867f606064",         "card_product_id":  "bd05ff06-ec09-41e6-9094-ea5e587c9129",   } }

Field Name	Description
event_type	Type of event
event_id	A unique identifier for the event.
meta_data.card_id	The identifier of the VCN.
meta_data.new_linked_pm	The identifier of the linked payment method.
meta_data.card_status	The status of the card.
meta_data.user_id	The identifier of the user associated with the card.
meta_data.card_product_id	The identifier of the card product

vcn/card/plan/update

Plan split for orders placed using Virtual Card was updated by the consumer

{   "event_type":  "vcn/card/account/loaded",   "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",   "meta_data":  {         "card_id":  "bc1e7292-cc9f-437b-b961-228226385f4e",         "card_status":  "ACTIVE",         "new_plan":  "e015885b-3824-4476-9093-bbf55899d0d9",         "user_id":  "cfcdee2f-9009-4cb9-831a-a3867f606064",         "card_product_id":  "bd05ff06-ec09-41e6-9094-ea5e587c9129",   } }

Field Name	Description
event_type	Type of event
event_id	A unique identifier for the event.
meta_data.card_id	The identifier of the VCN.
meta_data.new_plan	The identifier of the installment plan for the linked payment method.
meta_data.card_status	The status of the card.
meta_data.user_id	The identifier of the user associated with the card.
meta_data.card_product_id	The identifier of the card product

vcn/card/account/loaded

Virtual Card was loaded with funds

{   "event_type":  "vcn/card/account/loaded",   "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",   "meta_data":  {         "card_id":  "bc1e7292-cc9f-437b-b961-228226385f4e",         "card_status":  "ACTIVE",         "card_balance":  "1200",         "card_funded_amount":  "200",         "user_id":  "cfcdee2f-9009-4cb9-831a-a3867f606064",         "card_product_id":  "bd05ff06-ec09-41e6-9094-ea5e587c9129",   } }

Field Name	Description
event_type	Type of event
event_id	A unique identifier for the event.
meta_data.card_id	The identifier of the VCN.
meta_data.card_status	The status of the card.
meta_data.card_funded_amount	The added amount to card for this transaction.
meta_data.card_balance	The balance of the card.
meta_data.user_id	The identifier of the user associated with the card.
meta_data.card_product_id	The identifier of the card product

vcn/card/account/unloaded

Virtual Card funds were unloaded

{   "event_type":  "vcn/card/account/loaded",   "event_id":  "a3fcb14b-7fb9-41b3-8d3a-1fa429bcf99d",   "meta_data":  {         "card_id":  "bc1e7292-cc9f-437b-b961-228226385f4e",         "card_status":  "ACTIVE",       "card_balance":  "1500",         "card_unloaded_amount":  "100",         "user_id":  "cfcdee2f-9009-4cb9-831a-a3867f606064",         "card_product_id":  "bd05ff06-ec09-41e6-9094-ea5e587c9129",   } }

Field Name	Description
event_type	Type of event
event_id	A unique identifier for the event.
meta_data.card_id	The identifier of the VCN.
meta_data.card_status	The status of the card.
meta_data.card_unloaded_amount	The amount removed from the card.
meta_data.card_balance	The balance of the card.
meta_data.user_id	The identifier of the user associated with the card.
meta_data.card_product_id	The identifier of the card product

Events – Checkout, Order & Settlement Management

Checkout Lifecycle Events Flowchart

Daily report generation, Document Verification, Consumer & Merchant Miscellaneous Events Flowchart

admin/settlements/report/created

Individual merchant settlement reports were generated

{     "event_type":  "admin/settlements/report/created",     "event_id":  "e26a2f12-1469-45dc-b79a-57d26e61f7c6",     "meta_data":  {       "settlement_id":  "5P7GJ9XQBT2F",       "settlements_date":  "2023-04-05",       "settlement_report_id":  "7c9e9ab8-7e3e-4a37-94f3-93213d4c4f4d"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.settlement_id	The identifier of the settlement.
meta_data.settlements_date	The date the settlements were created.
meta_data.settlement_report_id	The identifier of the settlement report

bank_accounts/approved_at

Merchant added bank account was approved

{     "event_type":  "bank_accounts/approved_at",     "event_id":  "15881875-1de8-42b2-a981-bfebef4b7af7",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

bank_accounts/created

Merchant added new bank account

{     "event_type":  "bank_accounts/created",     "event_id":  "dab180b1-9be6-4e58-a31d-89c4dc2f0f21",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

billing_address/created

A consumer added a new billing address

{     "event_type":  "billing_address/created",     "event_id":  "93b159e3-1c50-4438-9ccf-56a5c879bb66",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

billing_address/deleted

A consumer deleted a billing address

{     "event_type":  "billing_address/deleted",     "event_id":  "6477f4ac-3a44-40c0-8b4d-016140bf8574",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

billing_address/updated

A consumer updated a billing address

 {     "event_type":  "billing_address/updated",     "event_id":  "bf144329-d90f-4ce2-b751-fb7fe2928c82",     "meta_data":  {"is_default":  true} }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.is_default	Boolean signifying if updated billing address is default

cashback/bank_withdrawal/requested

A consumer submitted a request for redeeming cashback as bank withdrawal

{   "event_type":  "cashback/bank_withdrawal/requested",   "event_id":  "b5f5d5e8-2f0b-4e1f-baaf-81d692174262",   "meta_data":  {     "amount":  99.99,     "currency":  "USD",     "bank_name":  "ABC Bank",     "account_number":  "XXXXXXXXXXXX"   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.amount	Amount of cashback being withdrawn
meta_data.currency	Currency code for the cashback amount
meta_data.bank_name	Name of the bank to which cashback is being sent
meta_data.account_num	Bank account number for the cashback recipient

cashback/earned

A consumer earned cashback by shopping at an affiliate partner

{     "event_type":  "cashback/earned",     "event_id":  "5bf02cbf-7bec-4219-ba42-41a132174262",     "meta_data":  {       "amount":  10.00,       "currency":  "USD",       "merchant_name":  "Test Merchant"     } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.amount	Amount of cashback earned
meta_data.currency	Currency code for the cashback amount
meta_data.merchant_name	Name of affiliate partner where customer placed order

checkout/created

Merchant created a checkout.

{   "event_type":  "checkout/created",   "event_id":  "09e38701-8ec9-48d1-afa8-9b72085fd170",   "meta_data":  {     "name":  "John Doe",     "email":  "[email protected]",     "amount":  "500.0",     "source":  "online",     "country":  "USA",     "currency":  "USD",     "ip_address":  null,     "line_items":  [       {       "sku":  "12345",       "upc":  null,       "price":  250.0,       "title":  "Product 1",       "currency":  null,       "quantity":  1,       "image_url":  null,       "reference":  null       },       {       "sku":  "67890",       "upc":  null,       "price":  250.0,       "title":  "Product 2",       "currency":  null,       "quantity":  1,       "image_url":  null,       "reference":  null       }     ],     "checkout_id":  "c7f40b9d-4d4e-42f2-971c-d73a4a19cbe5",     "merchant_id":  "abcdefg123456",     "phone_number":  "+1-555-555-5555",     "order_reference":  "ORD123456",     "shipping_address":  {       "line1":  "123 Main St",       "line2":  "",       "line3":  "",       "line4":  "",       "state":  "CA",       "title":  "Mr.",       "country":  "USA",       "postcode":  "90210"     }   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.name	A string representing the name of the customer.
meta_data.email	A string representing the email address of the customer.
meta_data.amount	A string representing the total amount of the purchase.
meta_data.source	A string indicating the source of the checkout. ["online", "instore", "shopify", "wix", "magento"]
meta_data.country	A string representing the country code of the customer,
meta_data.currency	A string representing the currency code of the transaction
meta_data.line_items	A list of objects representing the items in the order.
meta_data.line_items[].sku	A string representing the stock keeping unit of the item.
meta_data.line_items[].price	A string representing the price of the item.
meta_data.line_items[].title	A string representing the title of the item.
meta_data.line_items[].currency	A string representing the currency code of the item price.
meta_data.line_items[].quantity	An integer representing the quantity of the item.
meta_data.checkout_id	A UUID string representing the unique identifier of the checkout.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.
meta_data.phone_number	A string representing the phone number of the customer.
meta_data.order_reference	A string representing the reference number of the order.
meta_data.shipping_address	A JSON object representing the shipping address of the customer
meta_data.shipping_address.line1	A string representing the first line of the address.
meta_data.shipping_address.line2	A string representing the second line of the address.
meta_data.shipping_address.line3	A string representing the third line of the address.
meta_data.shipping_address.line4	A string representing the fourth line of the address.
meta_data.shipping_address.title	A string representing the title of the address.
meta_data.shipping_address.country	A string representing the country code of the address.
meta_data.shipping_address.postcode	A string representing the postal code of the address.

checkout/fetched

A consumer visited a checkout page

{   "event_type":  "checkout/fetched",   "event_id":  "c9b38452-4c4a-4c1d-a4b4-7c9578c73ee6",   "meta_data":  {     "name":  "John Smith",     "amount":  "500.00",     "source":  "online",     "country":  "usa",     "currency":  "USD",     "branch_id":  null,     "ip_address":  "127.0.0.1",     "checkout_id":  "d62a5361-34d2-4886-a005-ef71e156a988",     "merchant_id":  "a100af68-6639-420e-a697-57a25e7461db",     "order_reference":  "ORD1234567890",     "shipping_address":  {       "line1":  "123 Main St",       "line2":  "Apt 5",       "line3":  null,       "line4":  "New York",       "state":  "NY",       "title":  null,       "country":  "USA",       "postcode":  "10001"     }   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.name	A string representing the name of the customer.
meta_data.amount	A string representing the total amount of the purchase.
meta_data.source	A string indicating the source of the checkout. ["online", "instore", "shopify", "wix", "magento"]
meta_data.country	A string representing the country code of the customer,
meta_data.currency	A string representing the currency code of the transaction
meta_data.ip_address	The IP address of the customer who made the checkout request.
meta_data.branch_id	A UUID string representing the unique identifier of the employee branch of merchant.
meta_data.checkout_id	A UUID string representing the unique identifier of the checkout.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.
meta_data.order_reference	A string representing the reference number of the order.
meta_data.shipping_address	A JSON object representing the shipping address of the customer
meta_data.shipping_address.line1	A string representing the first line of the address.
meta_data.shipping_address.line2	A string representing the second line of the address.
meta_data.shipping_address.line3	A string representing the third line of the address.
meta_data.shipping_address.line4	A string representing the fourth line of the address.
meta_data.shipping_address.title	A string representing the title of the address.
meta_data.shipping_address.country	A string representing the country code of the address.
meta_data.shipping_address.postcode	A string representing the postal code of the address.

checkout/order/confirmed

A consumer successfully placed an order

{     "event_type":  "checkout/order/confirmed",     "event_id":  "7966efce-91fd-4c2e-a2b0-d6b0467cc569",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

checkout/order/preapproved

A consumer order placement request was approved by the risk engine

{     "event_type":  "checkout/order/preapproved",     "event_id":  "35858c2b-e119-48eb-8357-b2f352a83451",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

checkout/send_abandonment_email

A consumer is reminded of an abandoned checkout

{   "event_type":  "checkout/send_abandonment_email",   "event_id":  "8871a151-650b-4d49-b41b-8cd0671b80b5",   "meta_data":  {     "amount":  500.0,     "currency":  "USD",     "created_at":  "2023-04-10 14:30:00.000000+00:00",     "consumer_id":  "8c245dba-3c64-49c6-9d9b-c9e6f2e1781a",     "merchant_id":  "a1234567-89ab-cdef-0123-456789abcdef",     "checkout_url":  "https://www.aetconline.com/checkout/?token=1234567890abcdef",     "order_reference_number":  "ORD-1234567890"   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.amount	A string representing the total amount of the checkout.
meta_data.currency	A string representing the currency code of the checkout
meta_data.created_at	The timestamp representing time of checkout creation.
meta_data.consumer_id	A UUID string representing the unique identifier of the consumer.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.
meta_data.order_reference_number	A string representing the reference number of the checkout.
meta_data.checkout_url	A URL representing the link to retrieve abandoned checkout

demos/created

A demo request for our platform was created

{   "event_type":  "demos/created",   "event_id":  "b52bf51c-6d19-44b0-bc43-d9ef6d3e6e97",   "meta_data":  {     "full_name":  "John Doe",     "company_name":  "Acme Inc.",     "company_email":  "[email protected]",     "company_phone_number":  "+1 (555) 123-4567"   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.full_name	A string representing the name of entity requesting a demo.
meta_data.company_name	A string representing the name of company the entity represents.
meta_data.company_email	A string representing the company email of the entity
meta_data.company_phone_number	A string representing the company phone number of the entity

employee/account/created

Merchant created a new employee account

{     "event_type":  "employee/account/created",     "event_id":  "d9862ea3-e4cf-46f0-871f-04042f9487e7",     "meta_data":  {       "recipient":  "[email protected]",       "recipient_fullname":  "Adrian Hernandez"     } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.recipient	A string representing the email of the new employee account.
meta_data.recipient_fullname	A string representing the full name of new employee.

installments/created

Installments were created for order being placed

{   "event_type":  "installments/created",   "event_id":  "b96d52fc-76a4-4cfc-a547-96f1f3526c9b",   "meta_data":  {     "plan_id":  "a2c6a7b2-21b9-4528-8a27-98c1fc2a6973",     "installments_id":  "24f8c9ec-fb28-45c6-9175-5a8a2a5a5f05",     "payment_method_id":  null   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.plan_id	A UUID string representing the plan split for the installments
meta_data.installments_id	A UUID string representing the secondary identifier for the order
meta_data.payment_method_id	A UUID string representing the existing payment method used during order placement, null if consumer is adding a new payment method

installments/estimation/created

Installments estimations were created for a checkout.

{     "event_type":  "installments/estimation/created",     "event_id":  "a0ad9195-2a57-4ef2-908c-d68350b38a43",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

lean/callback

Callback received from Lean (Open Banking Platform)

{   "event_type":  "lean/callback",   "event_id":  "832170a9-eb76-4883-8751-b840b02a310e",   "meta_data":  {     "type":  "results.ready",     "status":  "ping_results_ready",     "message":  "Your results are ready.",     "payload":  {       "id":  "3f37aa26-02d7-4b2f-bb7e-b4fa7294e7d8"     },     "event_id":  "c0d85a96-6f78-468f-a58e-05a6df89e6d2",     "timestamp":  "2023-04-10T15:10:00.000000Z",     "results_id":  "3f37aa26-02d7-4b2f-bb7e-b4fa7294e7d8"   } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.type	A string representing the type of callback
meta_data.status	A string representing the status of callback
meta_data.message	A string representing the descriptive message of the callback
meta_data.payload	A JSON object including triggering payload identifiers
meta_data.payload.id	A UUID string representing initial payload identifier
meta_data.event_id	A UUID string representing the event identifier
meta_data.timestamp	A timestamp string representing the time of event
meta_data.results_id	A UUID string representing the result identifier

linkedin/rejected

A consumer linkedIn URL upload was rejected

{     "event_type":  "linkedin/rejected",     "event_id":  "870cef64-3140-4d33-9fe5-86ef5423e849",     "meta_data":  {       "staff_id":  "870cef64-3140-4d33-9fe5-86ef54dedce8"       } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

linkedin/verified

A consumer linkedIn URL upload was verified

{     "event_type":  "linkedin/verified",     "event_id":  "8ffc2de1-ee0c-4cbe-b410-50628dfd69c1",     "meta_data":  {       "staff_id":  "8ffc2de1-ee0c-4110-bea6-d09569dedce8"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

passport/verified

A consumer passport upload was verified

{     "event_type":  "passport/verified",     "event_id":  "f04e0725-1c5d-445d-a193-b51840229373",     "meta_data":  {       "staff_id":  "8f4c70c9-7a2d-468c-a6bd-b5184b62e354"     }   }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

passport/rejected

A consumer passport upload was rejected

{     "event_type":  "passport/rejected",     "event_id":  "fa197fe1-dd1d-4dc2-a133-1f7f007223e1",     "meta_data":  {       "staff_id":  "8f4c70c9-7a2d-468c-a6bd-9dcf007223e1"       } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

salary/rejected

A consumer salary upload was rejected

{     "event_type":  "salary/rejected",     "event_id":  "434c0df7-c987-42d6-8943-4e4ed63cca3a",     "meta_data":  {       "staff_id":  "8f4c70c9-7a2d-468c-a6bd-4e4ed662e354"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

salary/verified

A consumer salary upload was verified

{     "event_type":  "salary/verified",     "event_id":  "43fa7cbd-4734-45ef-829d-9a6d26713292",     "meta_data":  {       "staff_id":  "8f4c70bd-4734-468c-a6bd-9dcbab62e354"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.staff_id	A UUID string representing the staff who performed the action

settlements/report/created

Merchant generated settlement report from API

{     "event_type":  "settlements/report/created",     "event_id":  "03805978-a896-4237-ba9f-36601718c8c8",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

order/report/created

Merchant generated orders report from dashboard

{     "event_type":  "order/report/created",     "event_id":  "1e064fb5-5551-4c81-825a-c2610ee93aac",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

refunds/report/created

Merchant generated refunds report from dashboard

{     "event_type":  "refunds/report/created",     "event_id":  "34dfecf1-c59e-46a8-872c-eaed97b19a78",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

order/voided

Order whose first installment payment was authorized, was voided by the merchant

{     "event_type":  "order/voided",     "event_id":  "577eee41-0e44-49eb-9c67-cf3ec9000eb2",     "meta_data":  null }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data	An object containing additional data about the event.

shopify_checkouts/uncaptured

A shopify checkout was abandoned in an uncaptured/cancelled state, past order captured age

 {     "event_type":  "shopify_checkouts/uncaptured",     "event_id":  "adae2923-a6e2-49ba-a660-93db482520da",     "meta_data":  {       "checkout_url":  "https://www.aetconline.com/checkout/?token=abcd123"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.checkout_url	A URL representing the link to retrieve the abandoned checkout

shopify_checkouts/unconfirmed

A shopify checkout was abandoned in an opened state

 {     "event_type":  "shopify_checkouts/unconfirmed",     "event_id":  "d8049cf7-9bff-4571-955a-29b2df1730e8",     "meta_data":  {       "checkout_url":  "https://www.aetconline.com/checkout/?token=erijdie234"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.checkout_url	A URL representing the link to retrieve the abandoned checkout

shopify_checkouts/unconfirmed/retry

A shopify checkout was abandoned in an opened state, past order cancel notification age

 {     "event_type":  "shopify_checkouts/unconfirmed/retry",     "event_id":  "c101caeb-cb5b-46fa-aafe-b047fecf1dc2",     "meta_data":  {       "checkout_url":  "https://www.aetconline.com/checkout/?token=cocjoecjoe"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.checkout_url	A URL representing the link to retrieve the abandoned checkout

order/captured

Order was captured by merchant

   {   "event_type":  "order/captured",   "event_id":  "ca770061-5d54-4137-b431-04e2f320dada",   "meta_data":  {     "number":  "+1234567890",     "plan_id":  "12345678-abcd-1234-abcd-1234567890ab",     "currency":  "USD",     "order_id":  "12345678-abcd-1234-abcd-1234567890ab",     "checkout_id":  "12345678-abcd-1234-abcd-1234567890ab",     "customer_id":  "12345678-abcd-1234-abcd-1234567890ab",     "merchant_id":  "12345678-abcd-1234-abcd-1234567890ab",     "order_amount":  999.99,     "order_number":  "1234567890",     "installment_id":  "12345678-abcd-1234-abcd-1234567890ab",     "transaction_id":  "12345678-abcd-1234-abcd-1234567890ab",     "order_reference":  "1234567890",     "downpayment_amount":  299.99   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.number	A string representing the phone number of the consumer.
meta_data.plan_id	A UUID string representing the plan split for the installments
meta_data.installment_id	A UUID string representing the identifier for the down payment installment of the order
meta_data.order_amount	A float representing the total amount of the purchase.
meta_data.currency	A string representing the currency code of the transaction
meta_data.customer_id	A UUID string representing the unique identifier of the consumer.
meta_data.checkout_id	A UUID string representing the unique identifier of the checkout.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.
meta_data.transaction_id	A UUID string representing the unique identifier of the merchant transaction.
meta_data.order_reference	A string representing the reference number of the order.
meta_data.order_number	A string representing the internal reference number of the order.
meta_data.downpayment_amount	A float representing the downpayment amount of the purchase.

order/completed

Order has been fully settled for by consumer

{   "event_type":  "order/completed",   "event_id":  "7cce08d8-4a93-45a4-b1b6-85a084304129",   "meta_data":  {     "order_id":  "1a2b3c4d-5e6f-7g8h-9i0j-1k2l3m4n5o6p",     "customer_id":  "a1b2c3d4-e5f6-g7h8-i9j0-k1l2m3n4o5p6",     "merchant_id":  "1q2w3e4r-5t6y-7u8i-9o0p-a1s2d3f4g5h6"   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.customer_id	A UUID string representing the unique identifier of the consumer.
meta_data.order_id	A UUID string representing the unique identifier of the order.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.

order/created

Order was created after consumer payment attempt was approved by risk engine

{     "event_type":  "order/created",     "event_id":  "514d39da-5acf-4657-96cd-6a81e2fd1189",     "meta_data":  {       "customer_id":  "2fef9364-c207-45ef-8b37-410ed0ddc3eb",       "order_id":  "1a2b3c4d-5e6f-7g8h-9i0j-1k2l3m4n5o6p",       "merchant_id":  "1q2w3e4r-5t6y-7u8i-9o0p-a1s2d3f4g5h6"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.customer_id	A UUID string representing the unique identifier of the consumer.
meta_data.order_id	A UUID string representing the unique identifier of the order.
meta_data.merchant_id	A UUID string representing the unique identifier of the merchant.

order/payed

A consumer paid for an upcoming installment from dashboard

{     "event_type":  "order/payed",     "event_id":  "d90b17a3-2665-47bf-b448-a1c86c3a2247",     "meta_data":  {       "installment_id":  "00000000-0000-0000-0000-000000000000"     } }

Field	Description
event_type	The type of event that occurred.
event_id	A unique identifier for the event.
meta_data.installment_id	An object containing additional data about the event.

order/refunded

{   "event_type":  "order/refunded",   "event_id":  "a0a5afbb-2a16-4eff-817d-c9d1fa1376fd",   "meta_data":  {     "currency":  "USD",     "order_id":  "00000000-0000-0000-0000-000000000000",     "full_refund":  true,     "refund_amount":  0.0,     "transaction_id":  "00000000-0000-0000-0000-000000000000",     "refunded_amount":  192.0   } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.refunded_amount	A float representing the total order amount refunded.
meta_data.refund_amount	A float representing the total amount refunded to consumer.
meta_data.currency	A string representing the currency code of the transaction
meta_data.order_id	A UUID string representing the unique identifier of the order.
meta_data.transaction_id	A UUID string representing the unique identifier of the merchant transaction.
meta_data.full_refund	A boolean representing if order was fully refunded.

payment/link/created

Checkout payment link was created

{     "event_type":  "payment/link/created",     "event_id":  "ec598ed0-096c-4259-931e-540b118505bc",     "meta_data":  {       "checkout_url":  "https://www.aetconline.com/checkout/?token=coempp",       "minutes_to_expiration":  1440     } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.checkout_url	A URL representing the checkout payment link.
meta_data.minutes_to_expiration	An integer representing the minutes till payment link expires.

order/payment_methods/updated

The payment method linked to recurring payment of an order was updated

{     "event_type":  "order/payment_methods/updated",     "event_id":  "9b3b3a57-0c80-4d38-9988-65bc4c917c7c",     "meta_data":  {       "payment_method_id":  "af45d324-aebf-4b3c-af75-c471d8e1f53a"     } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.payment_method_id	A UUID string representing the new payment method linked to recurring payments of the order.

order/captured/merchant

Order capture notification including list of employee emails to be notified

{     "event_type":  "order/captured/merchant",     "event_id":  "3c4d0382-8870-427d-adce-17c955d39b9a",     "meta_data":  {       "recipients":  ["[email protected]"],       "transaction_id":  "eedbcd22-c262-4791-91a5-cb85823f5580"     } }

Field Name	Description
event_type	Type of event being triggered
event_id	Unique identifier for the event
meta_data.recipients	A list of strings representing the list of employees to be notified.
meta_data.transaction_id	A UUID string representing the order capture transaction ID.

Introduction

Welcome to the Spotii API!

Authentication

Checkout

⚬ Workflow

⚬ Create a Checkout

HTTP Request

Query Parameters

Order

Customer

Billing

Shipping

Lines

Order

⚬ Get

Request

Response

⚬ Capture

Request

Response

Exceptions

⚬ Refund

Request

Query Parameters

Response

Exceptions

Errors

Platforms

Magento 2

1. Installation steps

Installation Using Composer (Recommended)

Manual Setup

2a. Admin Configuration

2b. Payment Setup

3a. Product Widget Setup

3b. Cart Widget Setup

WooCommerce

1. Installation steps

2a. Admin Configuration

2b. Payment Setup

Production Checklist

Events

Events – Registration and Account Management

Consumer Registration Event Flowchart

Merchant Registration Event Flowchart

Consumer, Merchant Account Management Event Flowchart

consumer/created

consumer/deactivated

consumer/duplicate_id

consumer/email/update/created

consumer/email/update/validated

consumer/identity/created

consumer/identity/validated

consumer/password/recovery/created

consumer/password/recovery/verifyed

consumer/password/update/created

consumer/password/update/verifyed

consumer/registration/created

consumer/registration/updated

consumer/registration/validated

consumer/registration/verifyed

consumer/updated

consumer/update-phone

customer/signin

email/submit/reminder/consumer

email/submit/reminder/merchant

merchant/approved

merchant/created

merchant/password/recovery/created

merchant/password/recovery/verifyed

merchant/password/update/created

merchant/password/update/verifyed

merchant/registration/created

merchant/registration/updated

merchant/registration/validated

merchant/registration/verifyed

merchant/tokens/public_private/created

merchant/updated

otp/attempt

user/email/verifyed
